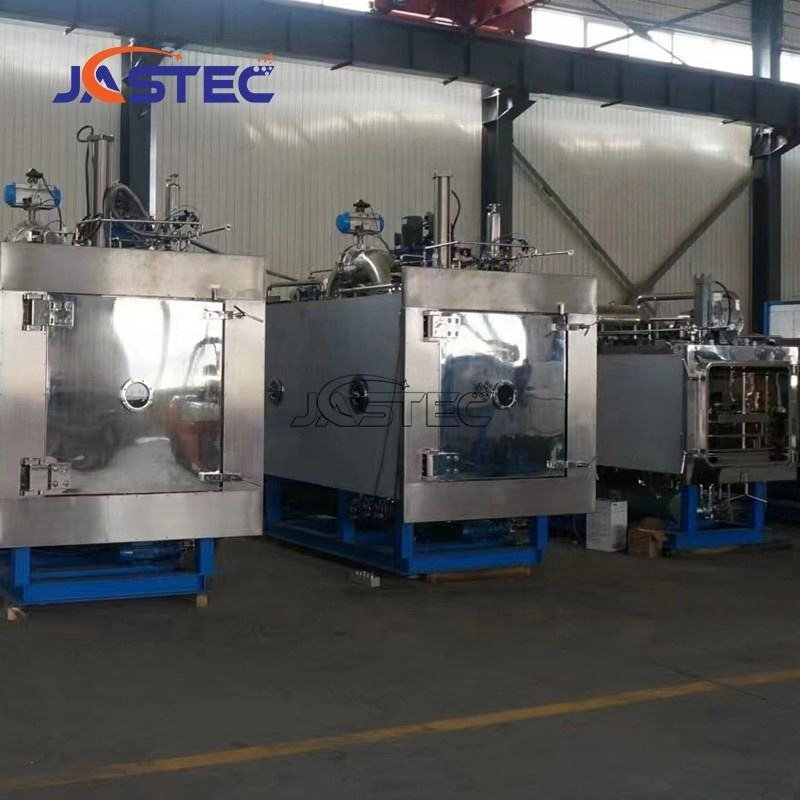

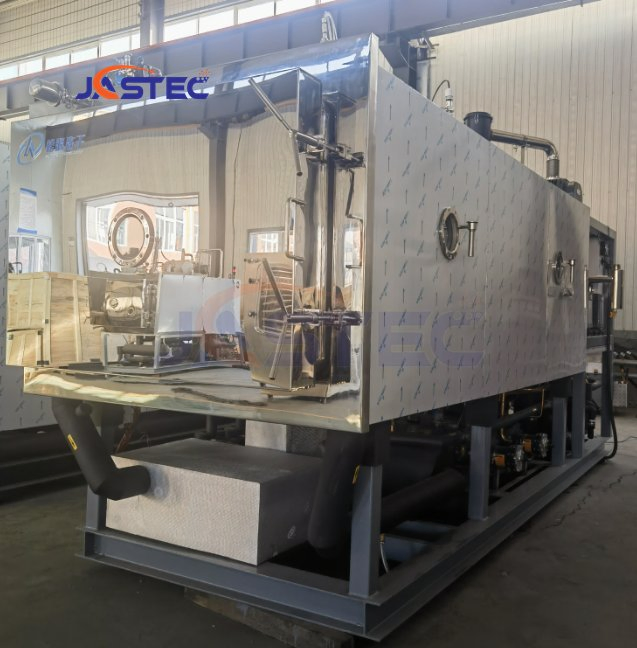

Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods
Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods
Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods
Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods
Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods
1 / 5
Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods
Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods
Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods
Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods
Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods

Pilot Freeze Dryer for Healthy Additive-Free Fruit, Vegetable and Probiotic Foods

Customization: Available
After-sales Service: Online Support/Video Technical Support
Warranty: 2 Years
Send Inquiry

Product Description

Basic Specifications

Model NO.
GZL-10
Type
Dryer
Voltage
380V
Power
43kw
Name
Freeze Dryer
Function
Biological Research, Chemicals and Food Dehydrator
Freeze-Dried Area
10.20.30.40 Sqm
Input Capacity
50-70kgs/Batch
Layers of Shelf
9+1
Production Capacity
100 L (with 10mm Material Thickness)

Product Overview

Freeze Dryer Overview
The GZL freeze dryer is widely used in new energy, biological research, chemical engineering, and food industries. Freeze-dried items can be easily stored for long periods of time. Adding water can restore them to their pre-freeze-dried state, maintaining their original biochemical properties. In-situ freeze drying eliminates the tedious drying process, preventing material contamination and automating the drying and sublimation process. This model features shelf heating and programmable functions, allowing users to memorize freeze-drying curves and conveniently monitor the freeze-drying process.

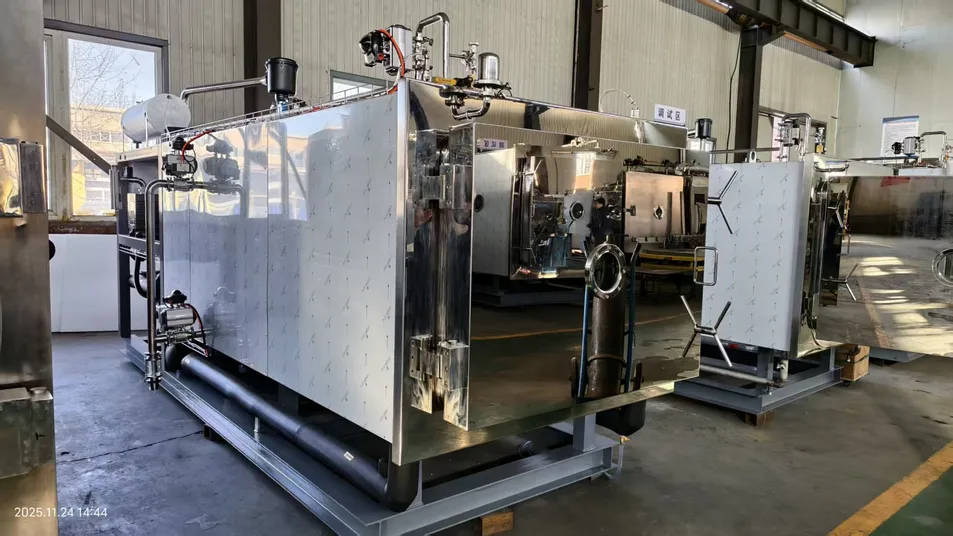

Internal view 1

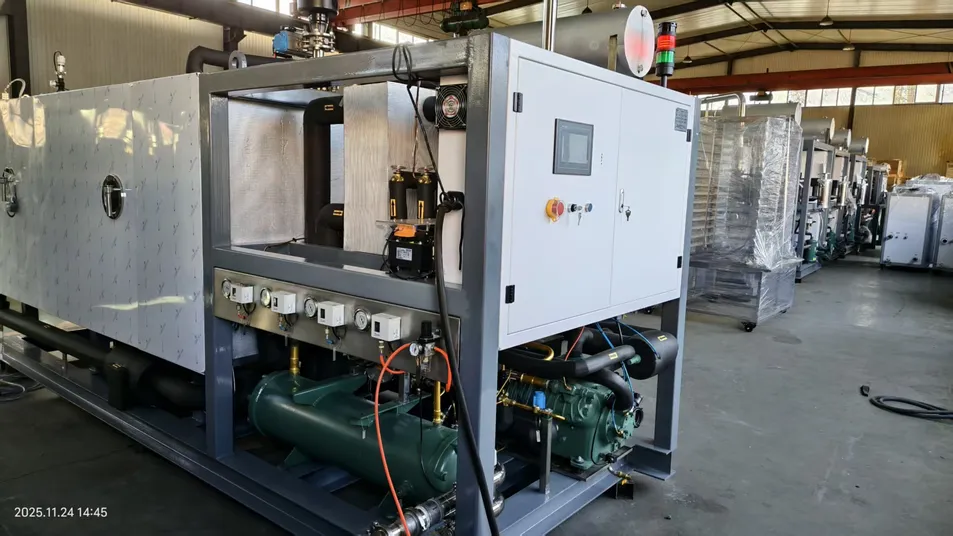

Internal view 2

Key Technical Advantages

  • Mixed Refrigerant: High-efficiency mixed refrigerant with low freezing point and high boiling point for superior heat transfer.
  • Optimized Control: Advanced algorithms control temperature rise rates and vacuum levels during drying.
  • Flow Design: Professional gas flow technology ensures strong water capture and high efficiency.
  • LYO-CONTROL System: Stores multiple recipes and enables real-time process adjustments.
  • Security: User levels and password management for decentralized operation.
  • Traceability: Optional host control system records up to ten years of operating data and curves.

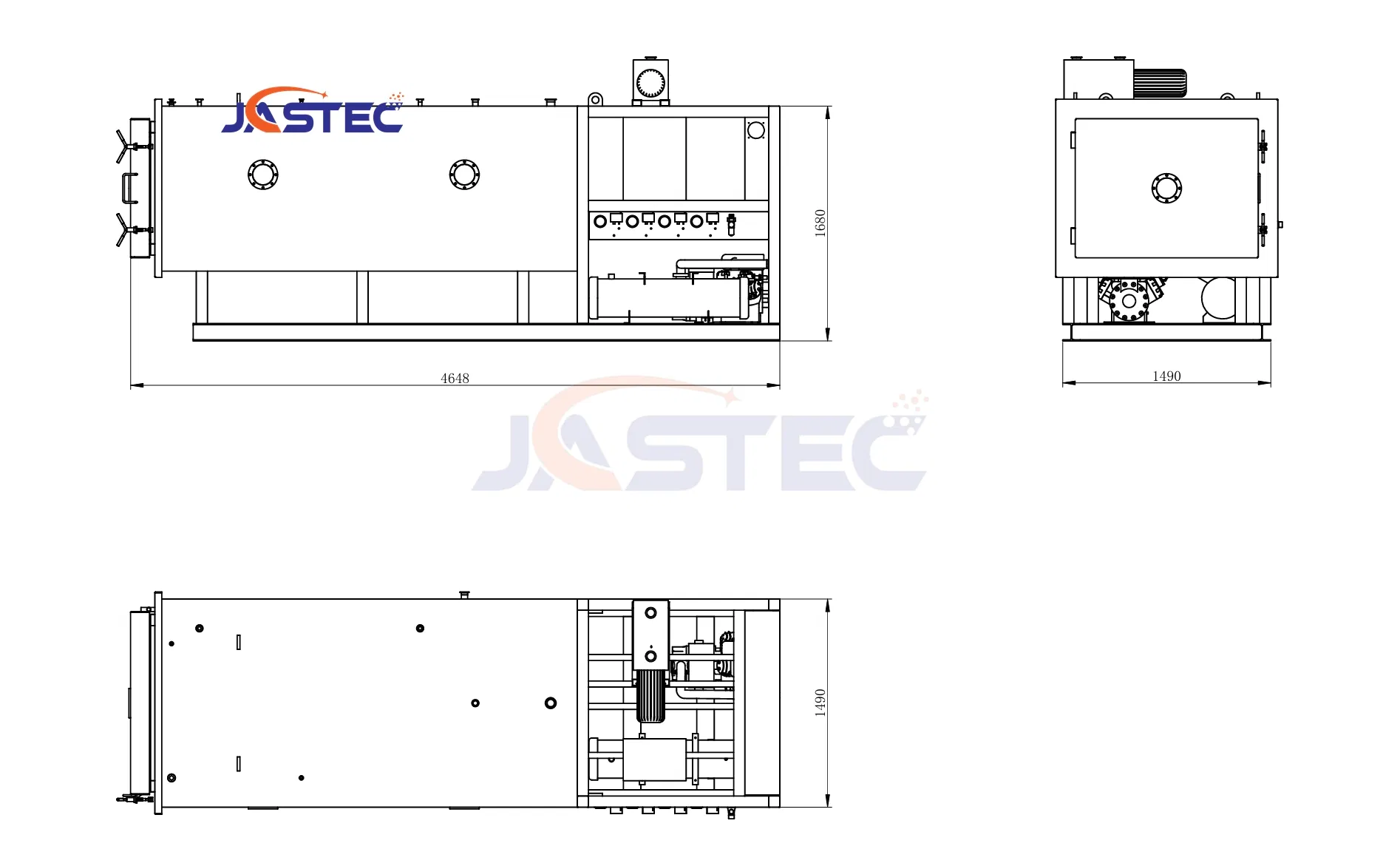

Technical Advantages

Operation Demonstration

Video Cover

Industrial Applications

Application scope

Food & Beverage: Candy, Pet snacks, Meat, Vegetables, Fruit, Instant food, Aloe vera juice.

Cosmetic & Personal Care: Freeze-dried facial masks, Powdered cosmetic formulations.

Advanced Materials: Li-rich Mn-based Cathode, Sodium Iron Sulfate Cathode, Silicon-based Anode Materials.

Functional Ingredients: Probiotics, Cordyceps sinensis, and other microbial cultures.

Packing & Delivery

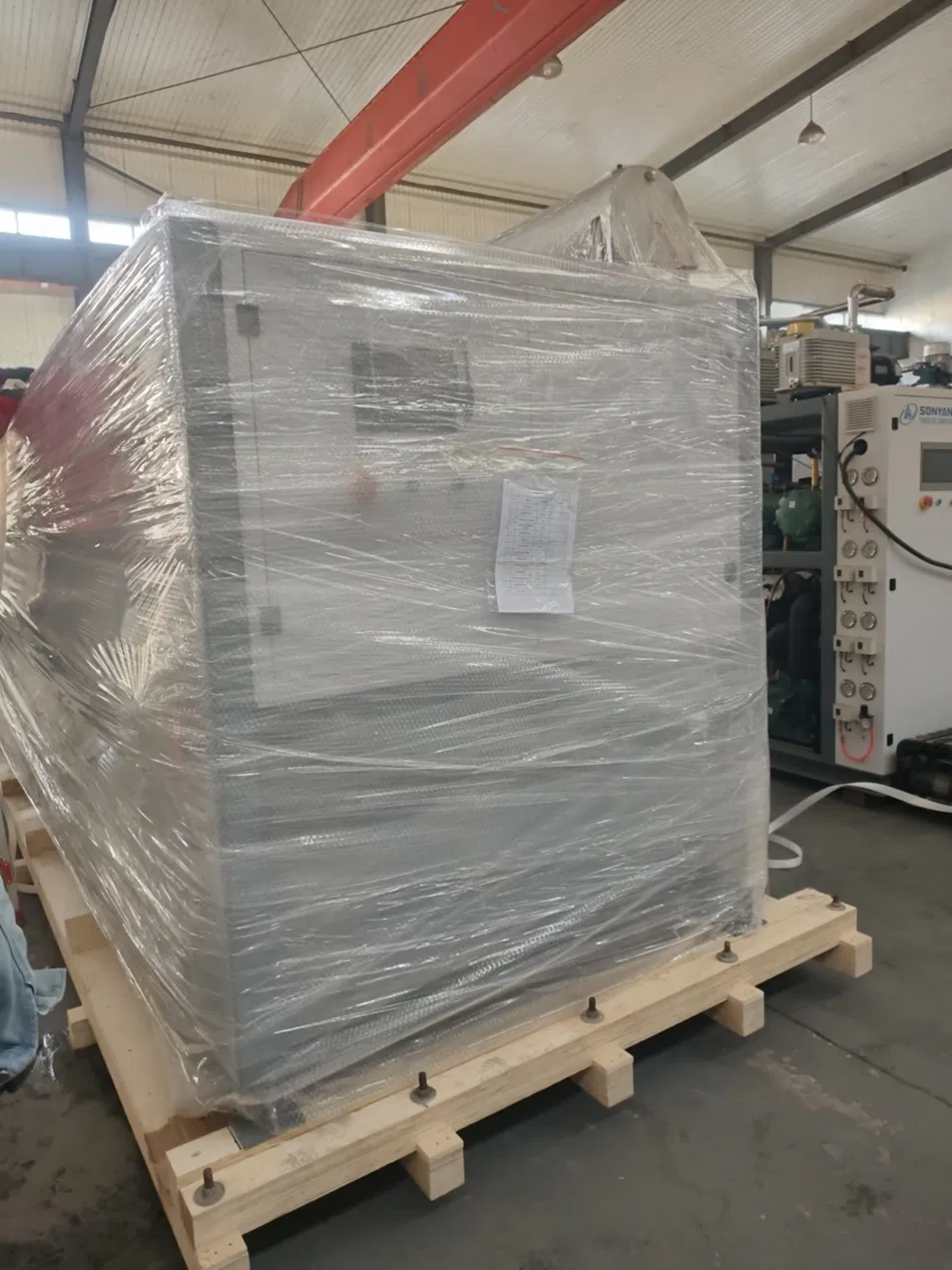

Packing process 1

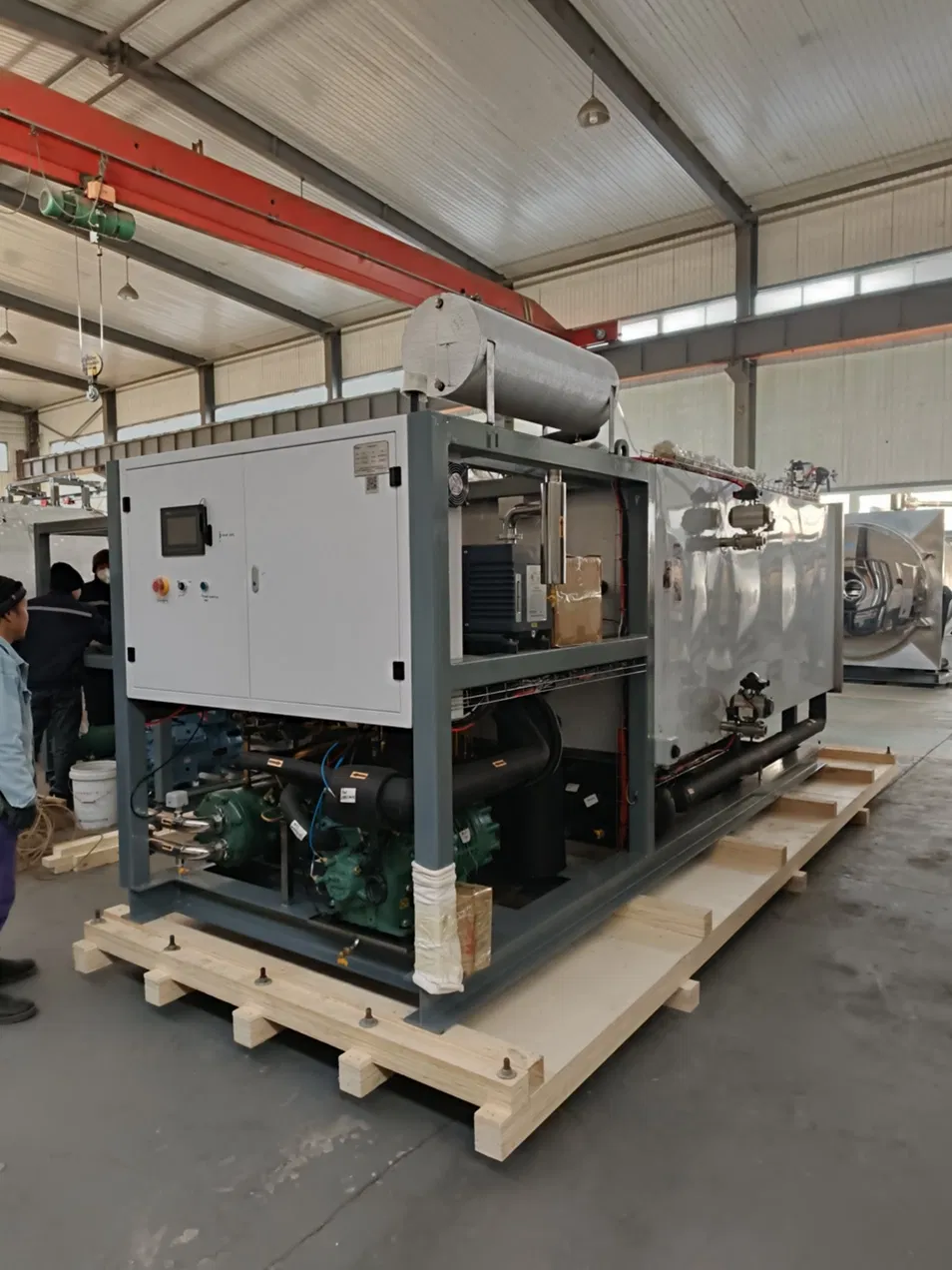

Packing process 2
The equipment is securely packaged in a heavy-duty, custom-built wooden crate designed for industrial shipping. The crate features reinforced plywood panels and a robust internal framing structure to ensure maximum protection during transit. It is mounted on an integrated pallet base for easy handling with forklifts or pallet jacks.

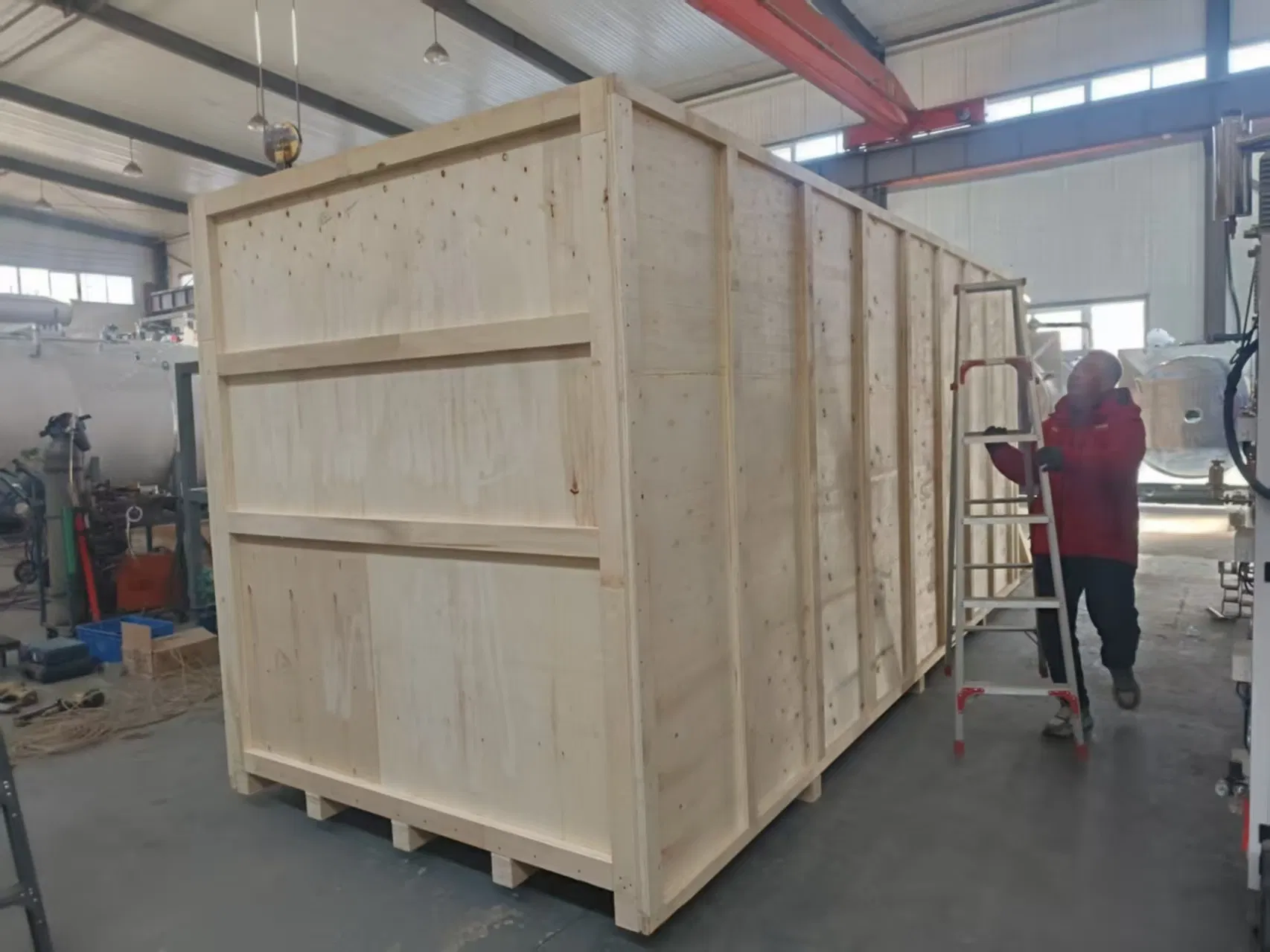

Final Package

Service & Support

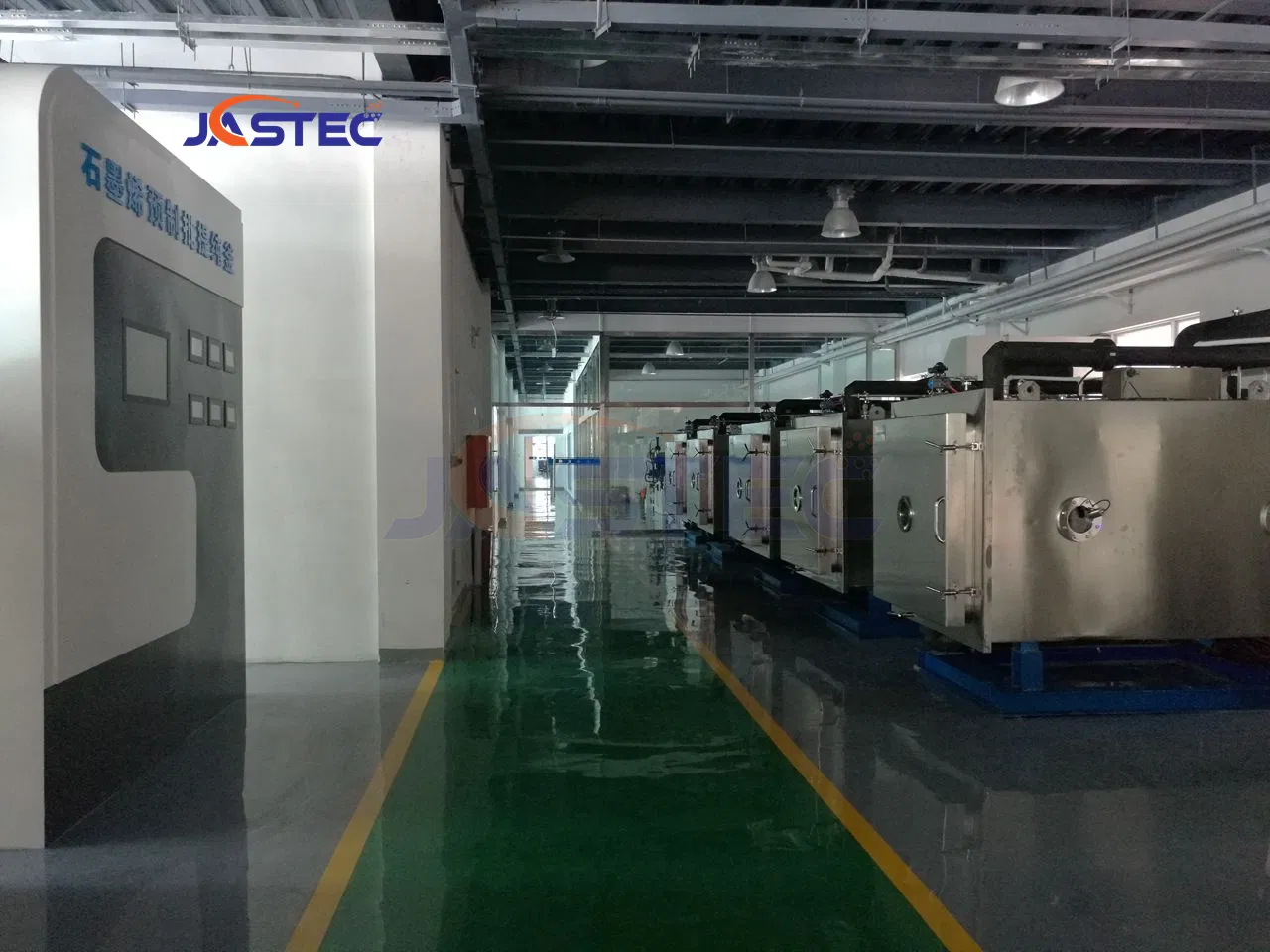

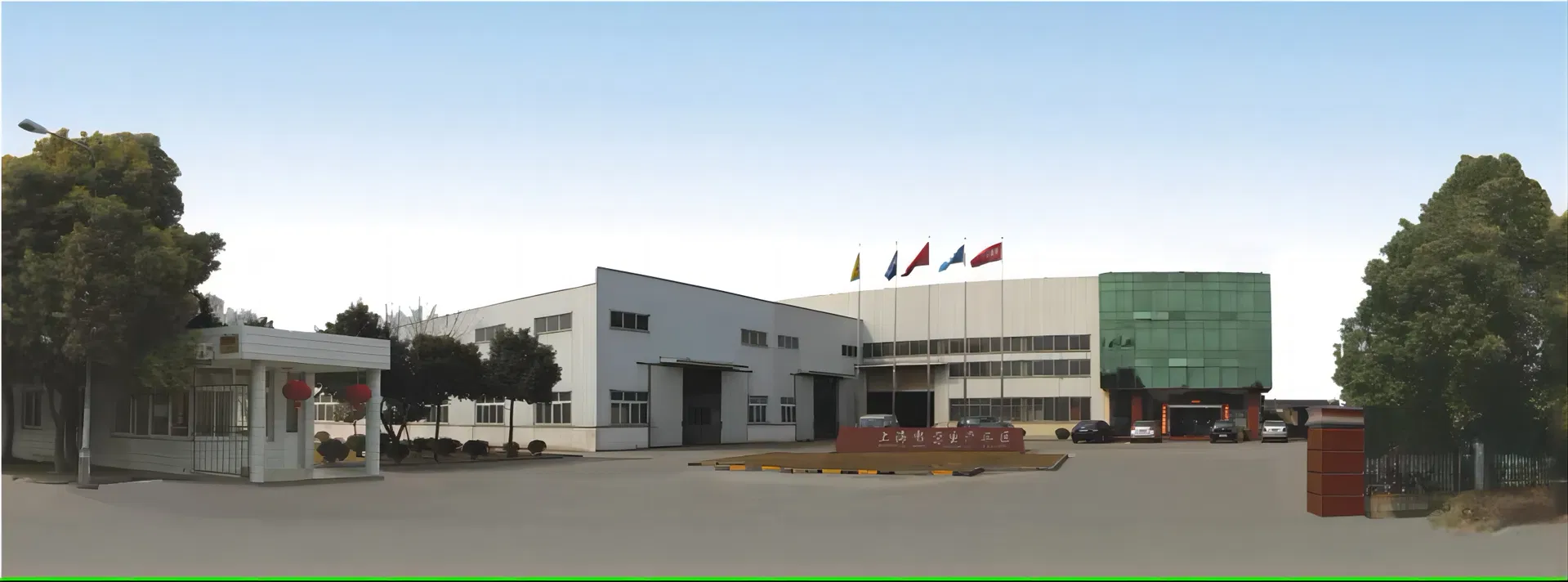

Industrial Facility
As a professional supplier of food deep processing machinery, we integrate development, sales, and after-sales services. We provide professional solutions for extraction, drying, mixing, and grinding equipment. Our systems comply with CE, SGS, and GMP standards. Our machinery has demonstrated high stability and reliability across more than 160 countries.
Certificate 1
Certificate 2
  • Professional Team Support: Global team covering pre-sales research and international installation.
  • Comprehensive Service System: From on-site inspection to long-term warranties and customized upgrades.
  • Core Values: Committed to Quality, Innovation, and Service excellence.

    • Frequently Asked Questions

    Q1: What is the primary application of the GZL-10 Freeze Dryer? A: It is an industrial-scale vacuum freeze dryer designed for dehydrating and preserving fruits, vegetables, instant foods, and chemical intermediates while maintaining their original structure and flavor.
    Q2: What is the batch capacity and drying area? A: The GZL-10 features an effective drying area of approximately 10.5 m² with an ice condensing capacity of ≥200 kg per batch, suitable for medium-to-large scale production.
    Q3: What vacuum level can the system achieve? A: Equipped with a high-efficiency vacuum pump group, it can reach an ultimate vacuum of ≤5 Pa, ensuring rapid sublimation rates.
    Q4: How is the drying process controlled? A: It features an advanced PLC automatic control system with a touchscreen HMI, allowing operators to monitor shelf temperature, vacuum degree, and drying time with pre-set curves.
    Q5: Does the machine support automatic defrosting? A: Yes, it is equipped with an efficient water immersion or spray defrosting system to rapidly melt ice from condenser coils, reducing downtime between batches.
    Q6: Can the shelf temperature be adjusted during the cycle? A: Yes, the shelves use a circulating thermal oil system for precise temperature control ranging typically from -40°C to +80°C through all drying stages.
